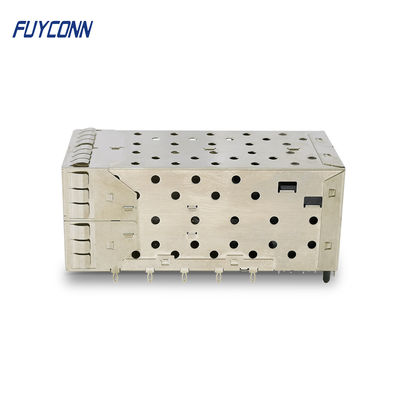

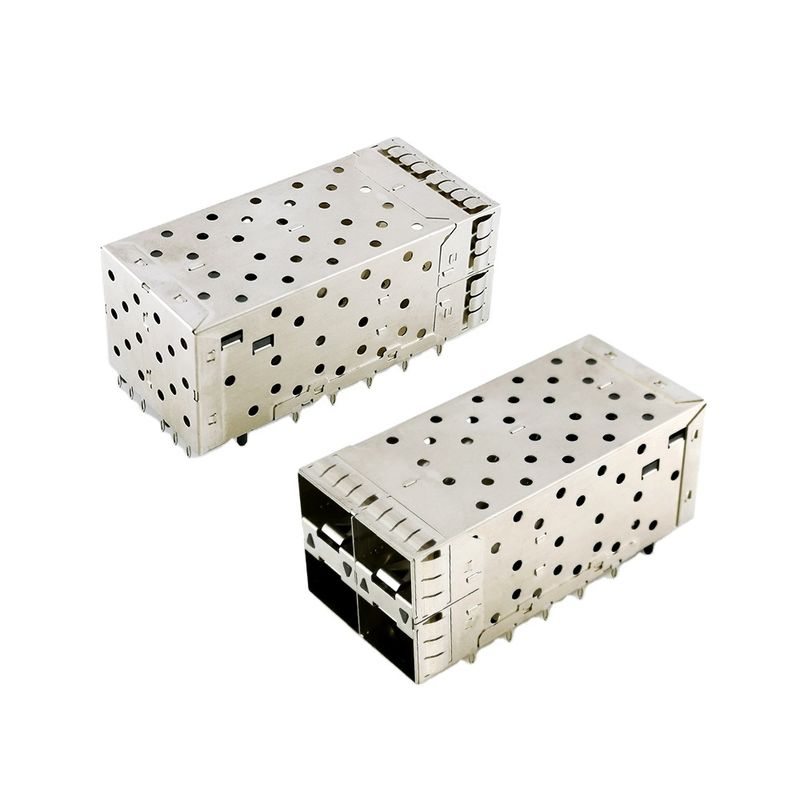

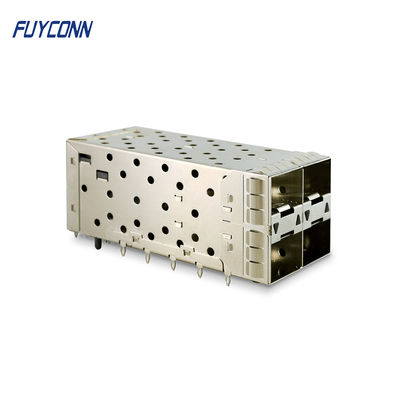

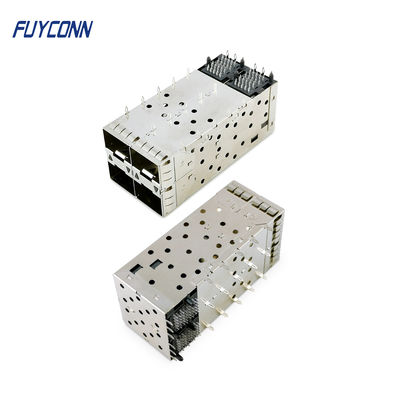

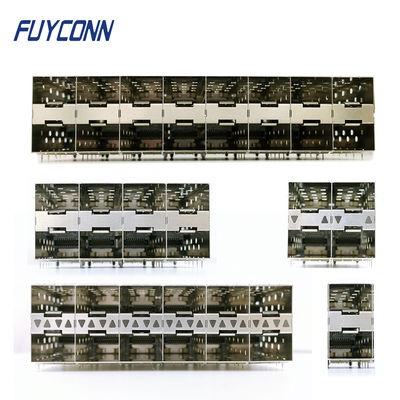

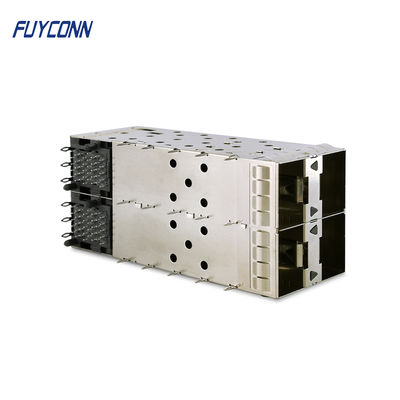

SFP+ 2x2 Press-Fit Connector 80pin Small Form-factor Pluggable Plus Stacked 2-by-1 Multi-Port SFP+ Connector w/ Lightpipe Ports
SFP (Small Form-factor Pluggable) module connector with various data speed rates is a major optical transceiver used for data communication. First introduced in early 2000, SFP connectors were designed to replace the previous gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Based on IEEE 802.3 and SFF-8472 protocol specifications, SFP module connectors can handle up to 4.25Gb/s with greater port density than GBIC, earning them the nickname "mini GBIC."
To meet the demand for faster transmission speeds, SFP+ (or SFP10) was introduced in 2006 as an extension of SFP. Based on IEEE802.3ae, SFF-8431, and SFF-8432 protocol specifications, SFP+ supports data rates up to 10Gb/s and is compatible with Fibre Channel, 10GbE, SONET, OTN, and other communication standards. While similar in size to SFP, the primary difference is transmission speed. Both SFP and SFP+ are available in copper and optical variants.
Product Features
| 1. Product Name: |
SFP Connector |
| 2. Product Line: |
Small Form-factor Pluggable |
| 3. Connector Gender: |
Female Centronic Connector |
| 4. Contact Type: |
Small Form-factor Pluggable |
| 5. Number of Positions: |
80pin |
| 6. Ports: |
2*2 4 Ports |
| 7. Contact Material: |
Phosphor Bronze |
| 8. Finish: |
Nickel Silver |
| 9. Insulation Material: |
PBT |
| 10. Lightpipe: |
Included |
Electrical Specifications
| 1. Current Rating: |
1AMP |
| 2. Withstanding Voltage: |
500V for one minute |
| 3. Insulator Resistance: |
500MΩ min (at DC500V) |
| 4. Contact Resistance: |
35MΩ Max |
| 5. Operation Temperature: |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Networking
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers
Packing & Shipping
Strong Package
- Vacuum Tray
- PE Bag
- Take strong bags/boxes/cartons
- PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co., Ltd
Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models available.
Our products are UL- and SGS-certified and comply with RoHS Directive. With a product defect rate below 0.5%, 99% of customers repeat orders. Our ISO 9001:2008 and ISO 14001:2004 certified factory covers 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, and Assembly production lines.
