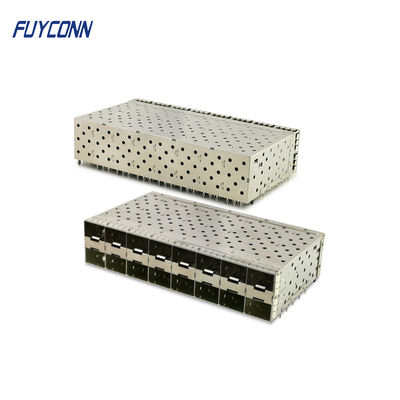

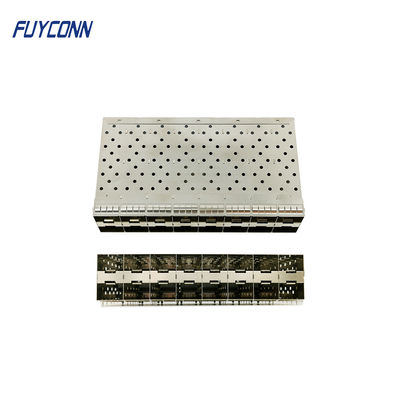

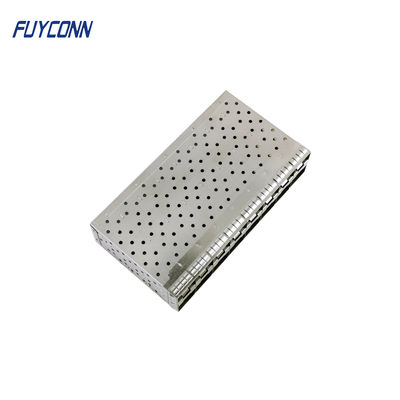

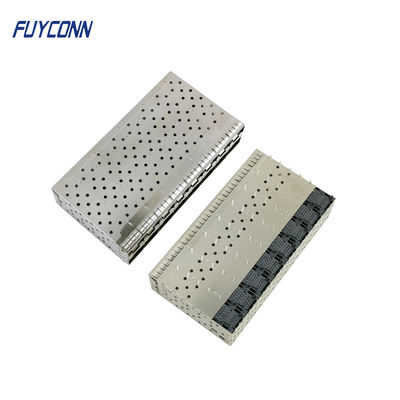

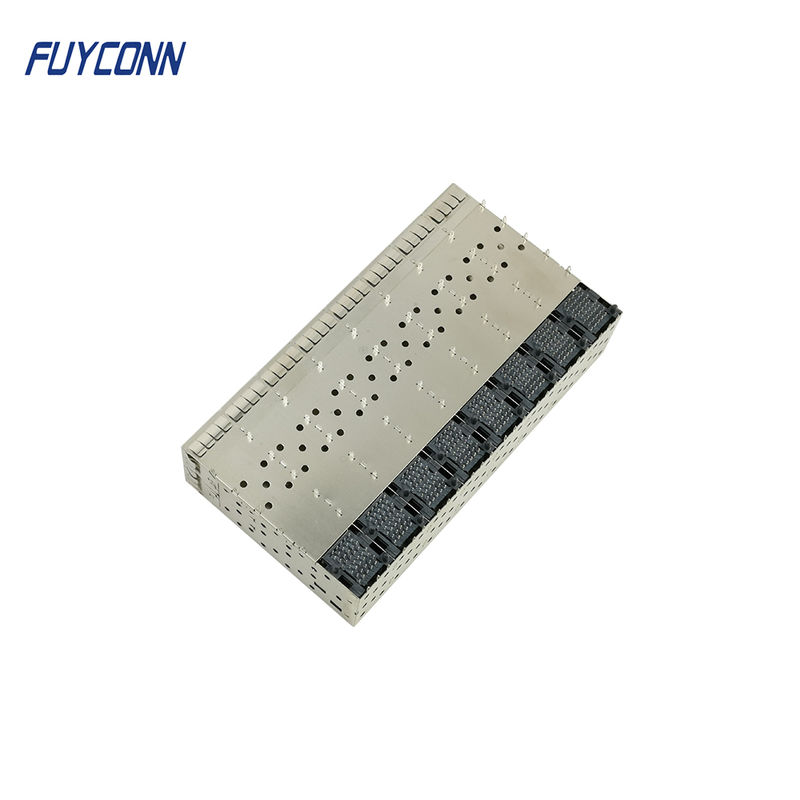

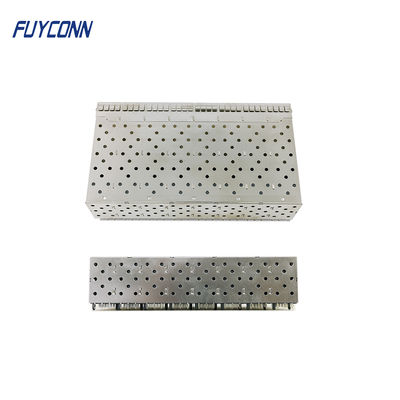

2x8 W/ EMI Gasket Integrate SFP+ Connector, SFP+ Series Connector 2x8 16 Port 320 Position Press Pin SFP Cage Assembly
SFP+ Series Connector Overview
The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a major optical transceiver for data communication. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s based on IEEE 802.3 and SFF-8472 specifications. They support Gigabit Ethernet, Fibre Channel, SONET, and other standards.
The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s (IEEE802.3ae, SFF-8431/8432). While similar in size to SFP, SFP+ supports higher-speed standards including 10GbE, Fibre Channel, SONET, and OTN. Both SFP and SFP+ are available in copper and optical variants.
Product Features
| Product Name: |
SFP Connector |
| Product Line: |
Small Form-factor Pluggable |
| Connector Gender: |
Female Centronic Connector |
| Contact Type: |
Small Form-factor Pluggable |
| Number of Position: |
320pin |
| Ports: |
2×8 (16 Ports) |
| Contact Material: |
Phosphor Bronze |
| Finish: |
Nickel Silver |
| Insulation Material: |
PBT |
| Lightpipe: |
Without |
Electrical Specifications
| Current Rating: |
1AMP |
| Withstanding Voltage: |
500V for one minute |
| Insulator Resistance: |
500MΩ min (at DC500V) |
| Contact Resistance: |
35MΩ Max |
| Operation Temperature: |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Networking
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers
